Description
Overview:

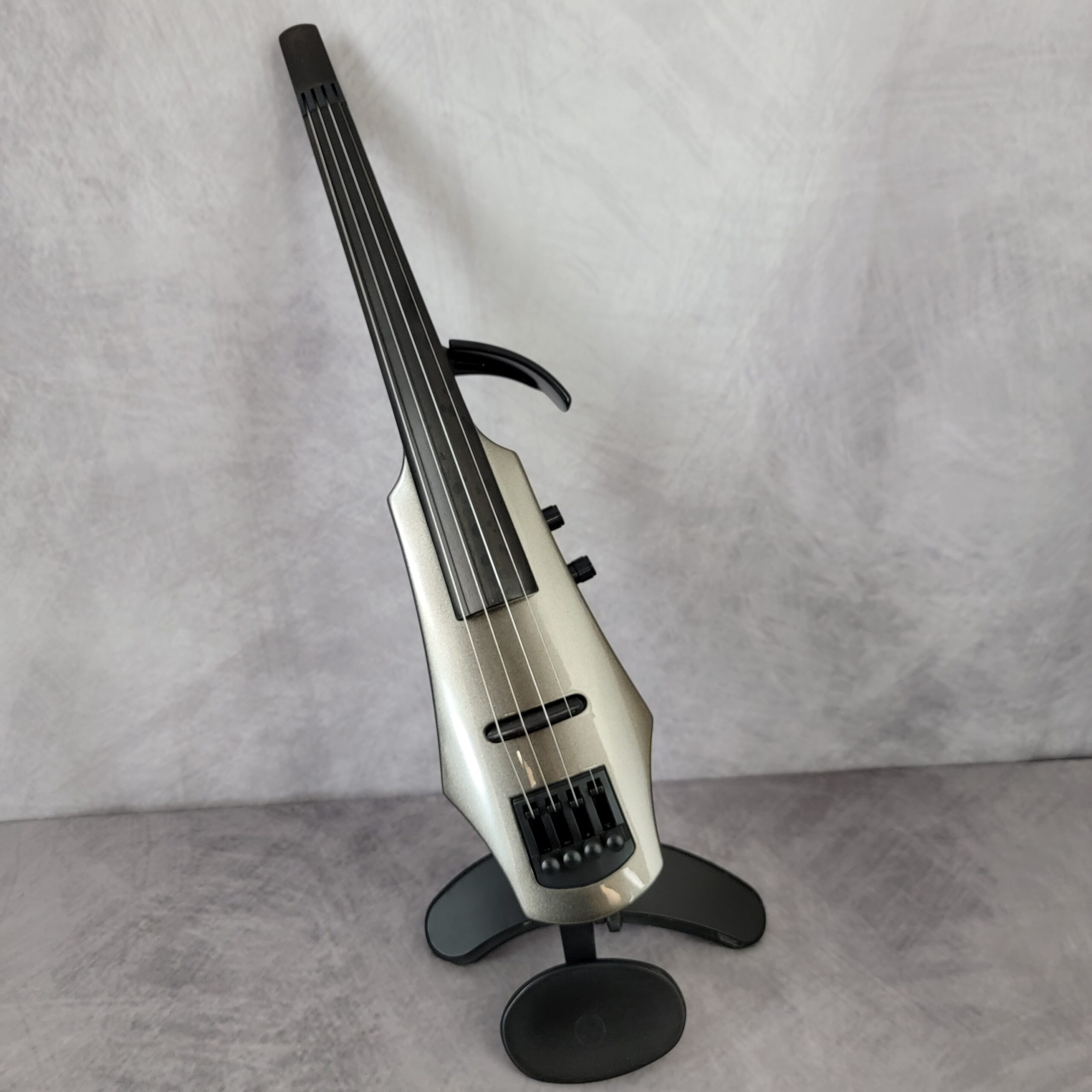

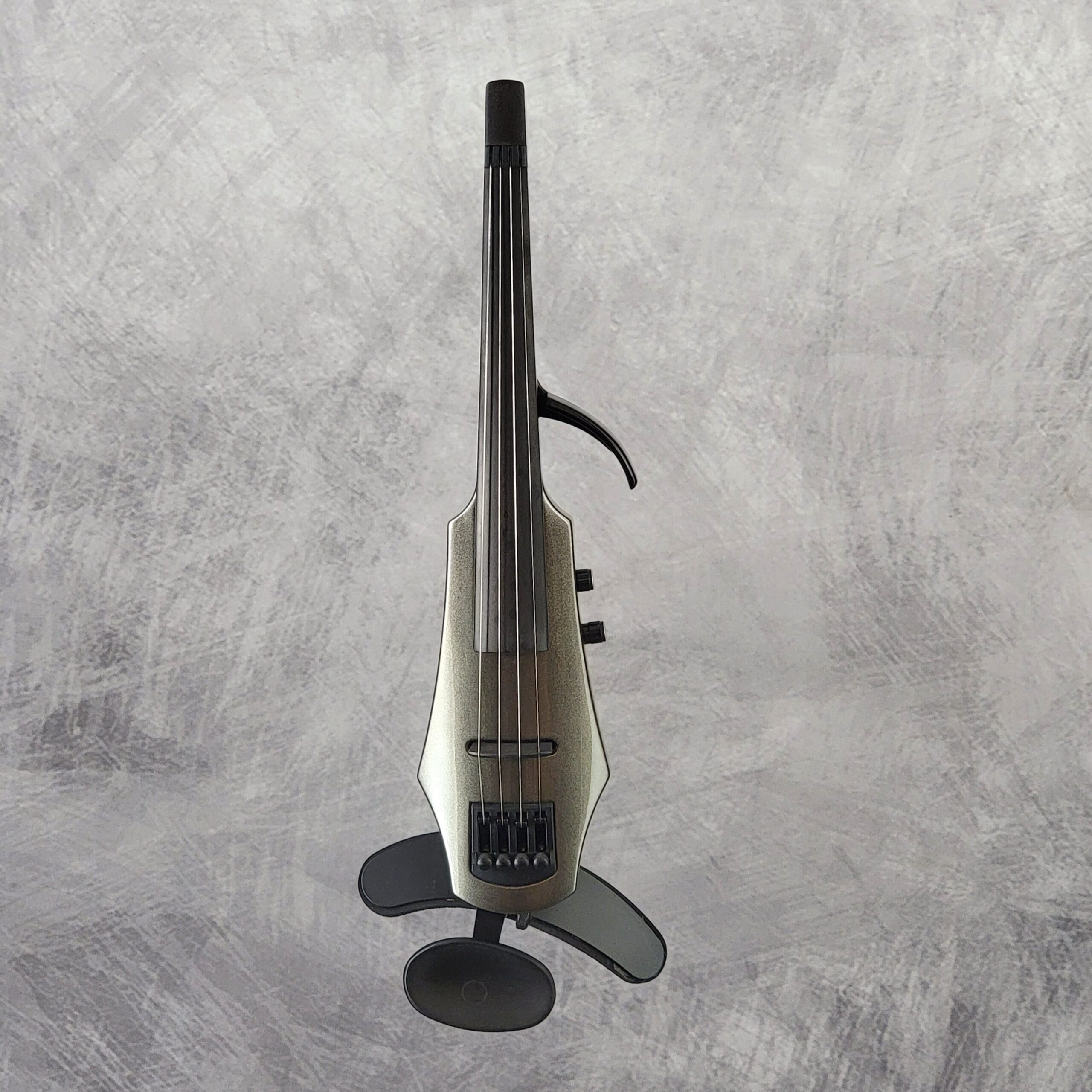

The CSMa Series Violin, with active output electronics, embodies physical elegance, tremendous ease of play, and amazing tone. Crafted to exacting standards, this series sets a high standard for performance and versatility in any setting. Good ergonomics, including light weight, are critical performance factors for any electric violin. With their familiar left hand landmarks, including the removable reference bout, CSMa Series instruments are remarkably easy to play.
The violin includes the Custom Shoulder Rest, which allows you to shape and adjust the padded base to the contours of your shoulder and chest, for a secure and comfortable fit. Also included with the instrument is the ergonomically contoured ebony chin rest, designed to work in tandem with the Custom Shoulder Rest for control, comfort and security. Good ergonomics, including light weight, are critical performance factors for any electric violin. Starting at just 585 grams, they set the pace as some of the lightest electrics on the market.
Dual Mode Output – The dual mode signal output electronics of the CSMa takes convenience, versatility and performance capability to another level.
Active Mode – Using the supplied charger, connect the CSMa to any AC outlet for 60 seconds. This will fuel the capacitor-powered active circuit for 16 hours from the time of the charge. The instrument can then be plugged straight into any low or high impedance device, no direct box necessary. Since there is no signal loss over the full frequency spectrum of the instrument, the fundamentals of every note remain clear and strong, even with extra-long cables.
Passive Mode – The CSMa can be played in this mode with an amplifier with an impedance of 1 meg ohm or greater (3-10 meg ohm recommended) or with a direct box.
Eco-Friendly Operation – CSMa instruments are battery-free, eliminating the hassle and cost of batteries while helping protect our environment.
Specifications:
Length: 540 MM (21.25″)
Width: 110 MM (4 5/16″)
Thickness: 65 MM (2 9/16″)
Weight: Highly carved interior for light comfort.
4 string: 585g
Scale Length: 330 MM (13″)
Body / Neck: Solid, straight grain maple.
Body Reference Bout: Black-dyed maple bout on treble side provides standard violin reference. Easily removable for unrestricted neck access.
Fingerboard: Ebony, hand-graduated, asymmetric relief, shaped for effortless play.
Bridge: Black-dyed maple, height adjustable via screws on back of body.
Strings: NS Electric Strings are standard. Compatible with solid and stranded core violin strings. Synthetic core strings are not recommended.
Precision Tuning Hardware: NS Design patented tuning system. Fine tuners are mounted on the body behind the bridge for precise, stable tuning. Automatic string clamping allows for quick, easy string changes.
Pickup: The Polar directional piezo pickup system responds selectively to either lateral string vibration (for dynamic bowing) or vertical string vibration (for remarkably even and sustained plucked/pizzicato sound, like a mandolin).
Electronics & Controls: Rotary volume control, with push-pull selection between Active and Passive output mode.
NS Violin Case: (included) Customized for the NS Violin, this standard hardshell case with handle and shoulder strap includes separate compartments for shoulder rest and accessories, a bow compartment and exterior zipper pouch. Made with durable Cordura® fabric, 3.2 kg (7 lb) loaded weight.
Support Systems:

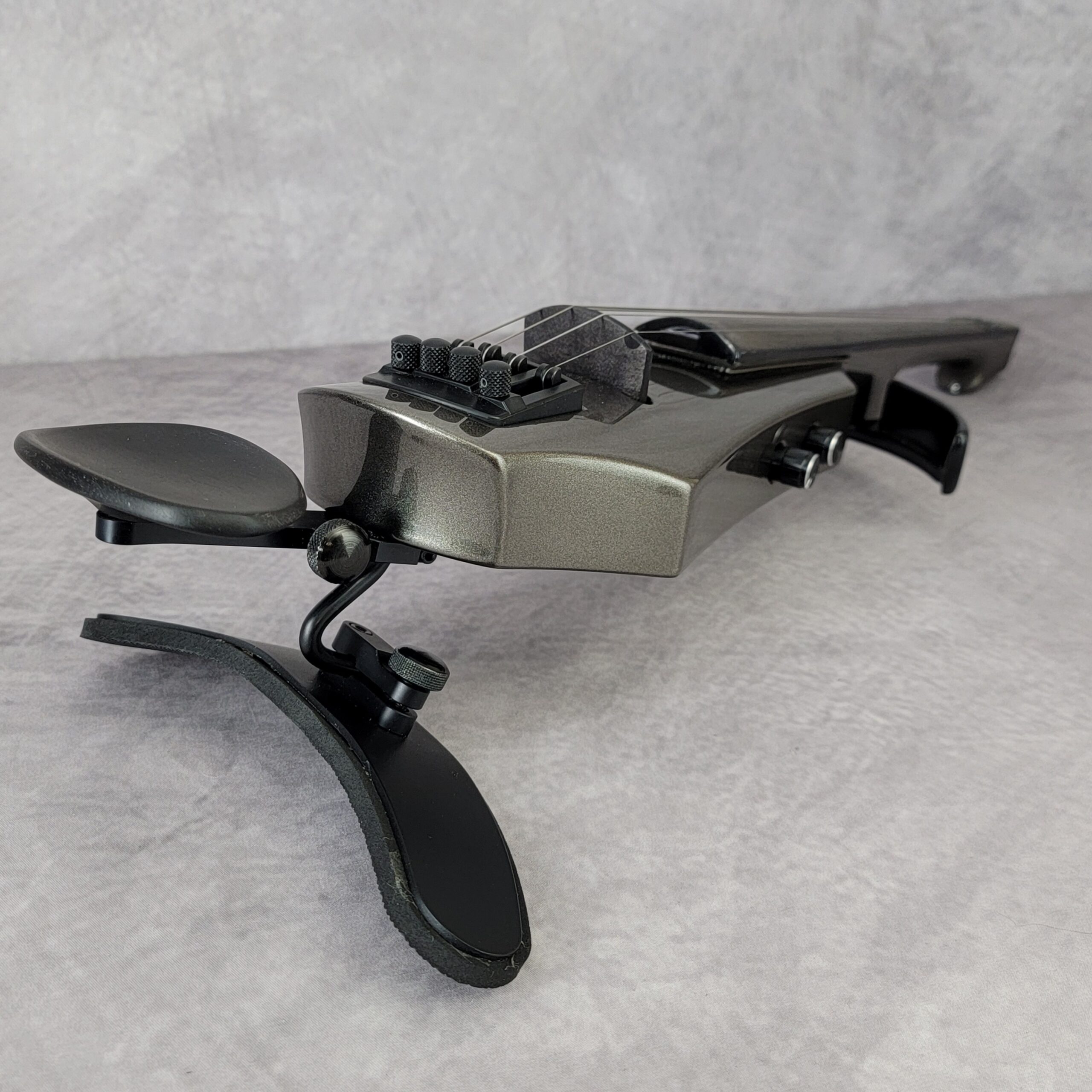

Custom Shoulder Rest: (included) Designed to work comfortably in tandem with the Contoured Ebony Chin Rest

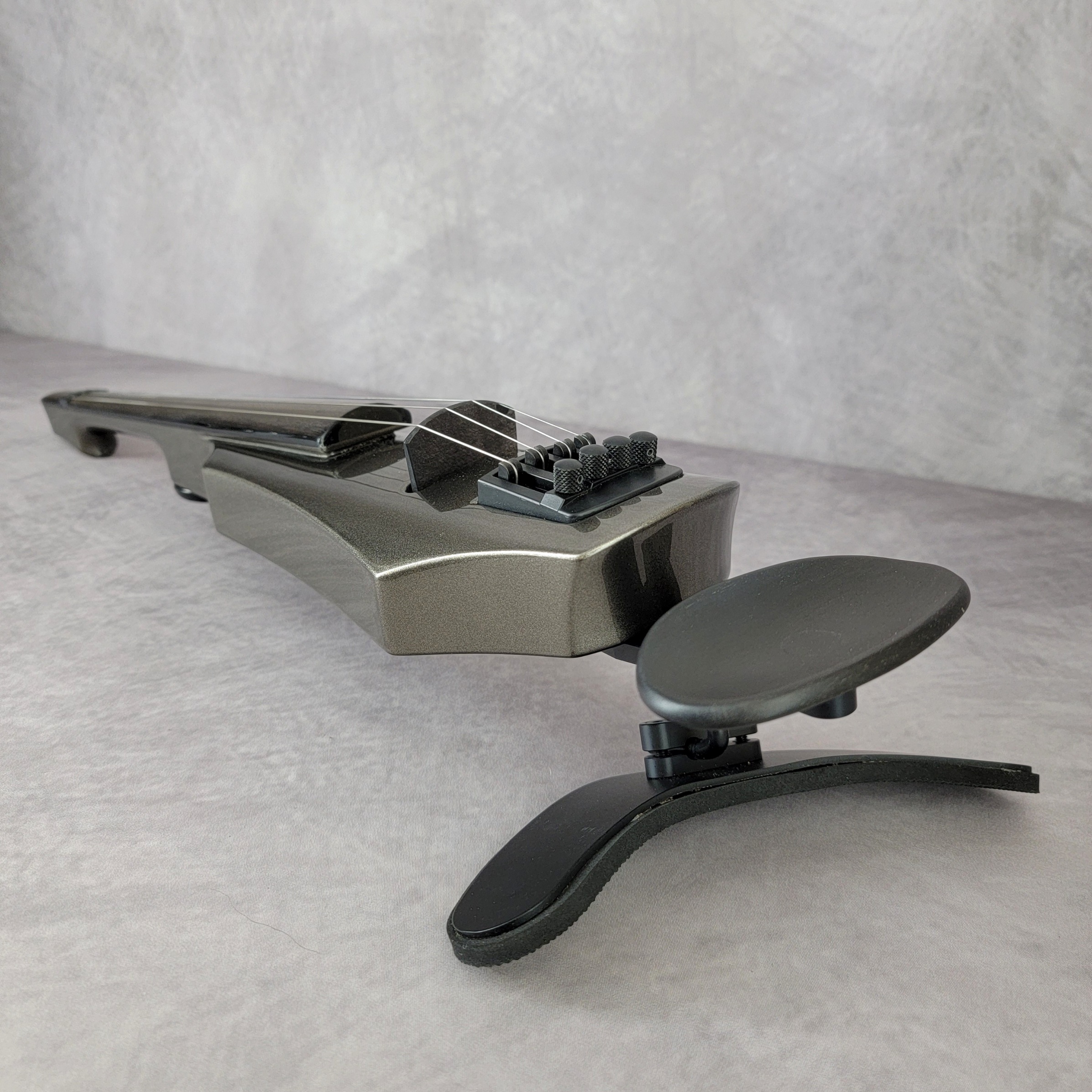

Contoured Ebony Chin Rest: (included) Designed to work comfortably in tandem with the Custom Shoulder Rest
Balanced Shoulder Rest: (“floats” the instrument in the desired playing position without being “clamped” between the jaw and the shoulder)
Adjustable Chin Rest (available for players wanting a more extensive range of position adjustments for more customized fit and comfort)
Violin Stand
Each instrument functions and plays according to the NS Design standard for performance and setup.
Find optional NS Electric Violin Accessories and Support Systems in the NS Shop:
Violin Bow
Adjustable Chin Rest
Balanced Shoulder Rest
Violin Flight Case
If you have any questions about the best NS instruments and accessories for you, visit thinkNS.com or reach out to our NS US Sales Team directly. Email: sales@nedsteinberger.com Text/Call us toll free: 1-833-551-8331
