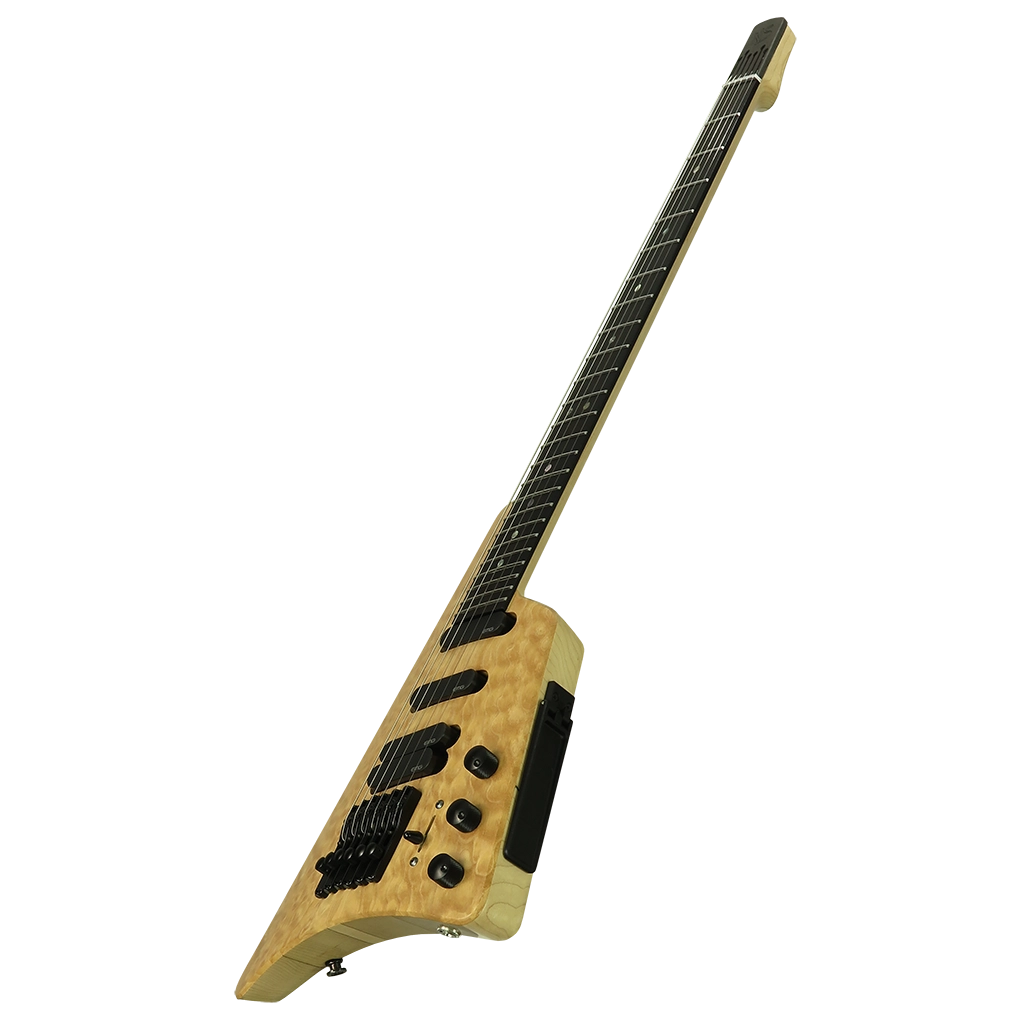

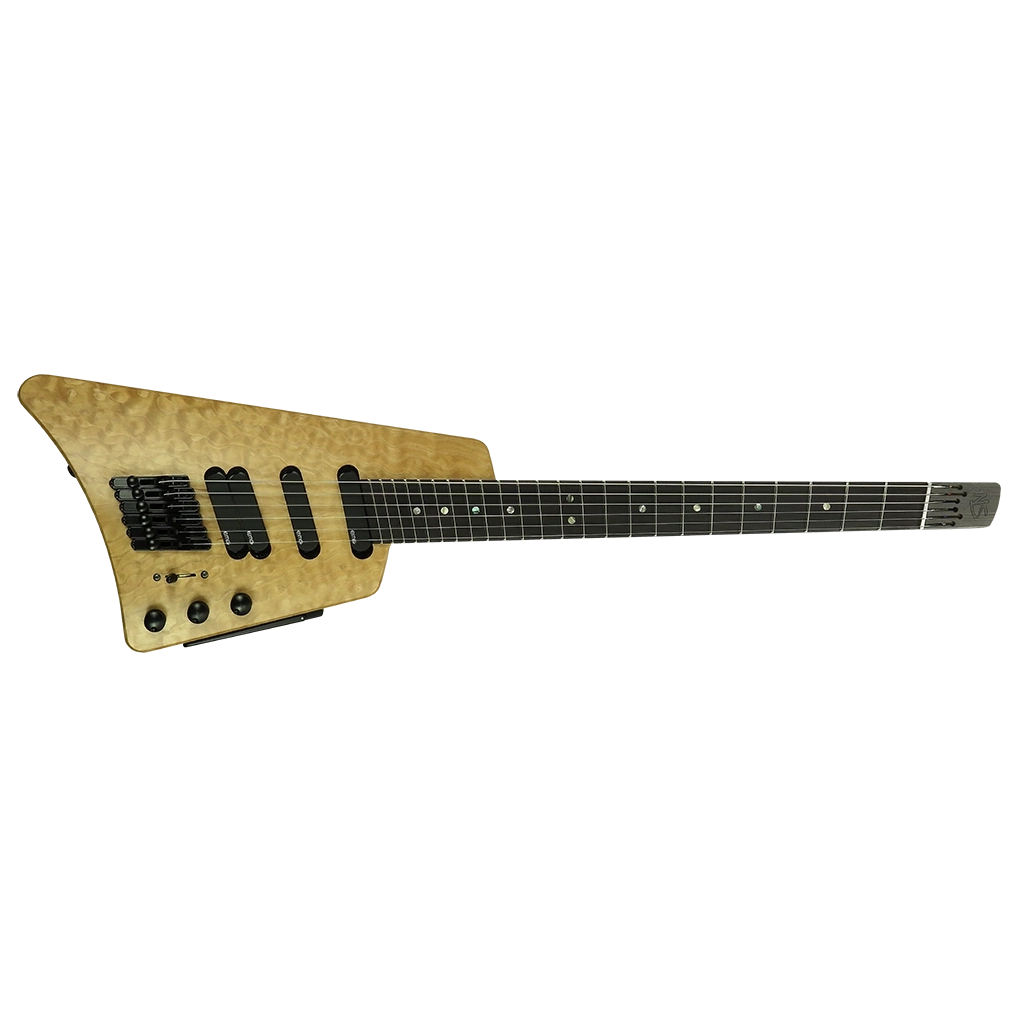

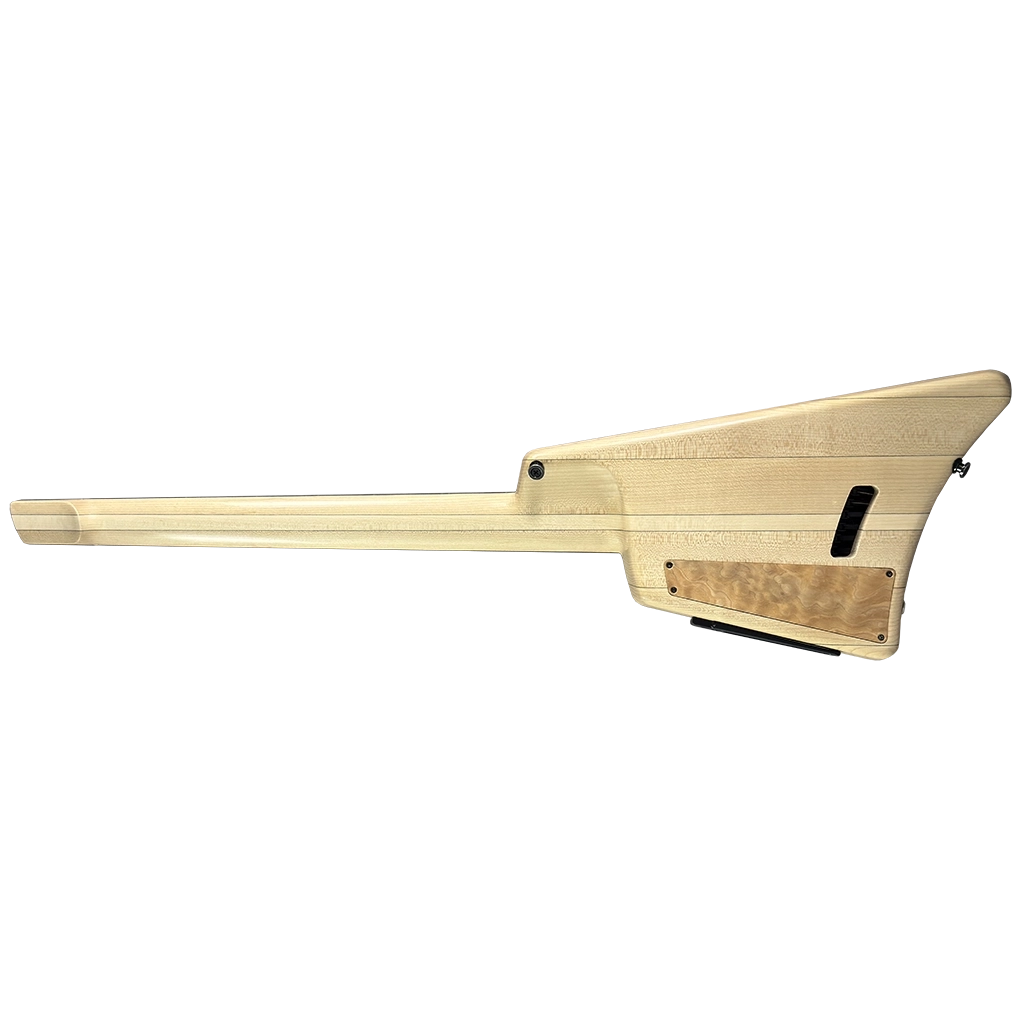

WELCOME to the debut of a new generation of guitars designed by Ned Steinberger. NS FIN Guitars are headless multiscale instruments that harness the latest advances in electric guitar technology. Conventional norms of style and construction are replaced by a vision of what is possible rather than what is known, resulting in instruments with extraordinary tonal range and playability, providing exciting new opportunities for musical expression and exploration.
FIN Guitar Highlights
The multiscale fret configuration increases the tension and clarity for the low strings while reducing the tension on the high strings for more supple string bending techniques. Due to the natural arc of the hand as it pivots from the elbow, playability is further enhanced by the fan-like fret geometry.
Individual Fulcrum™ tuning machines provide precise and stable tuning. Low friction, up-facing tuning knobs are convenient and rotate with minimal finger pressure. Machined from aircraft aluminum and hardened steel by RWB, the patented, self-clamping tuning mechanism allows for quick and easy string changes without the need for tools.

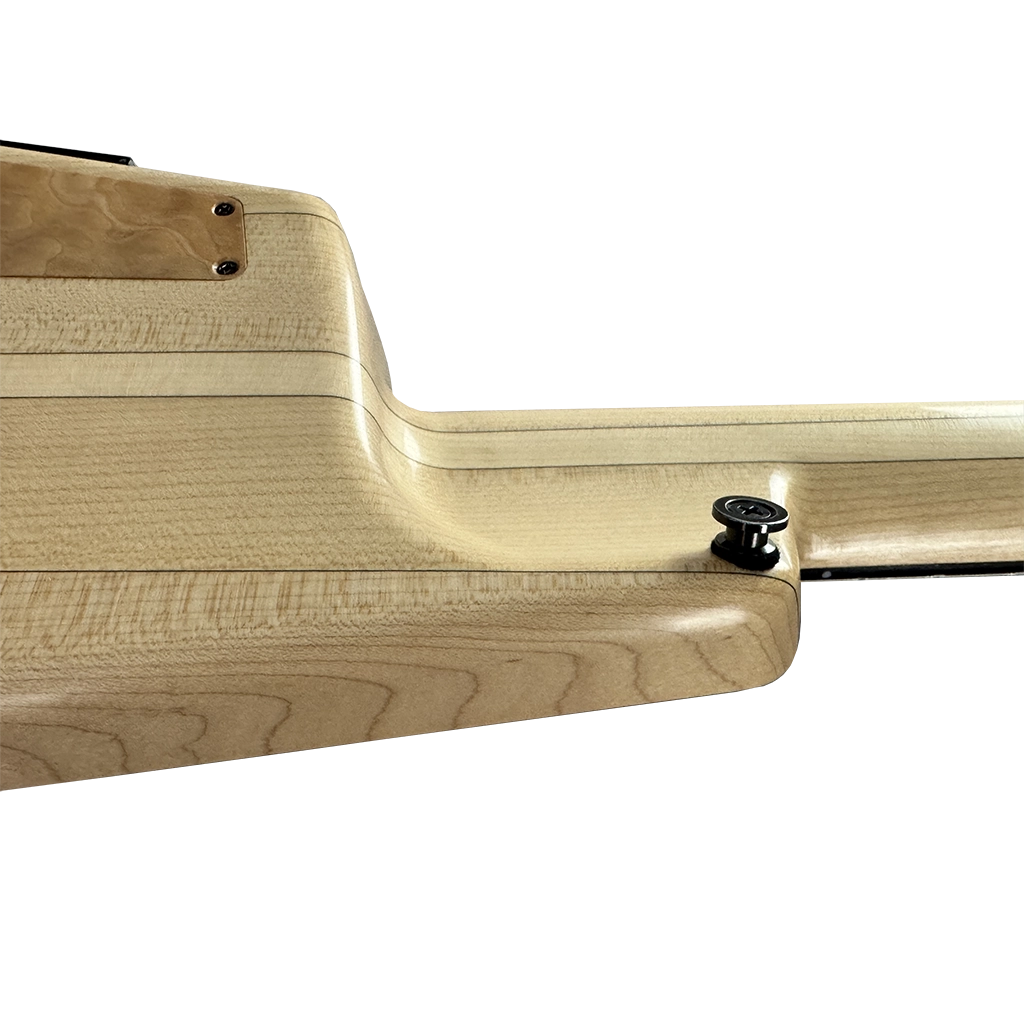

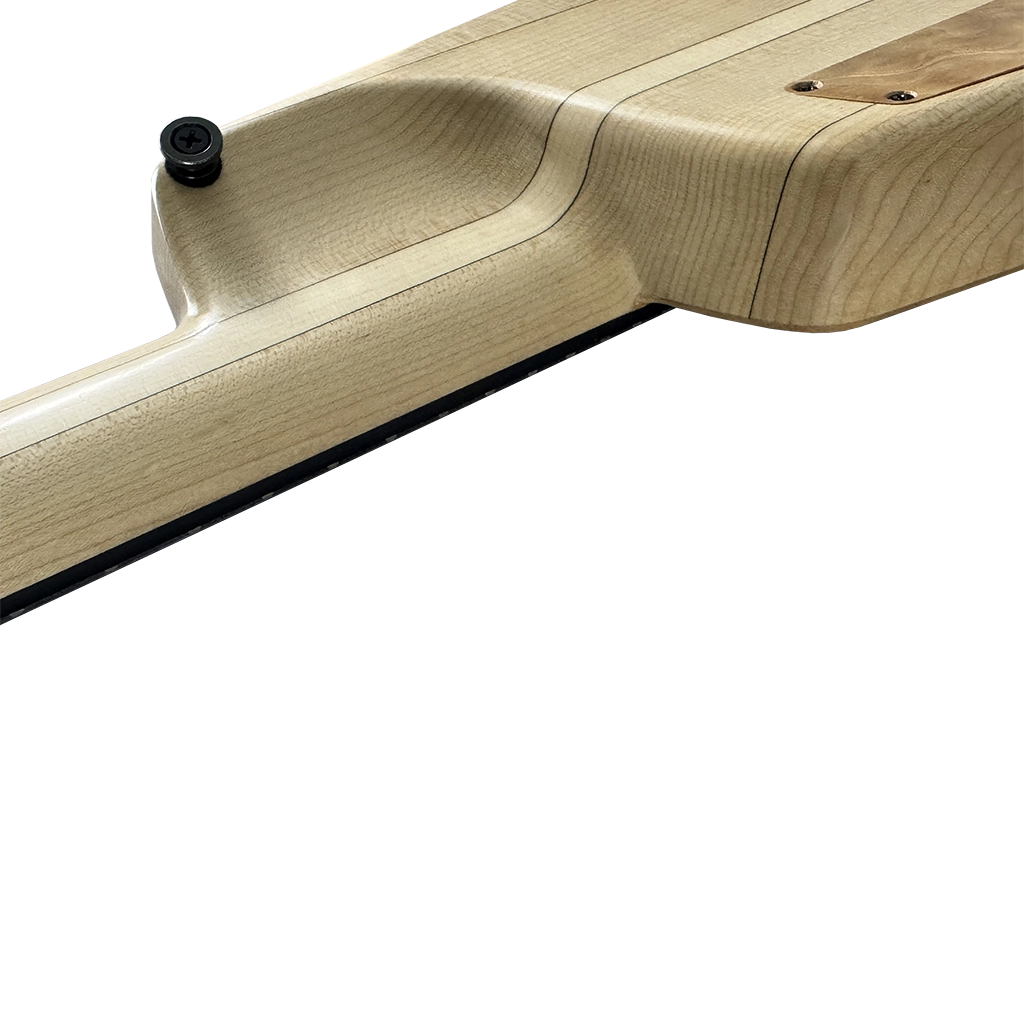

The FIN Guitar is balanced so that when it is hanging on a strap the neck remains at whatever angle the player chooses without having to hold it in place. For playing while seated, a folding leg rest is placed so that the guitar is balanced for use with both the right and left leg.
The EMG™ single pickup housing contains four individual S4 passive humbucker pickups, 2 in doubled bridge configuration.
Versatile dual mode electronics allow for a choice between passive or active output. Pulling up on the master volume control switches the Mi-Si Activator™ circuit on, providing low impedance output with 6 DB boost. Rechargeable supercapacitor technology eliminates the need for batteries and requires only one minute for a full charge.
Specifications
Length Overall: 33.75 inches
Width Overall: 9.18 inches
Weight: 5 lbs. 14 oz.
Scale length:
- High E string – 25.0 inches
- Low E string – 26.0 inches
String width:
- Nut – 1.42 inches
- Bridge – 2.06 inches
Neck width:
- Nut – 1.65 inches
- 12th fret – 2.01 inches

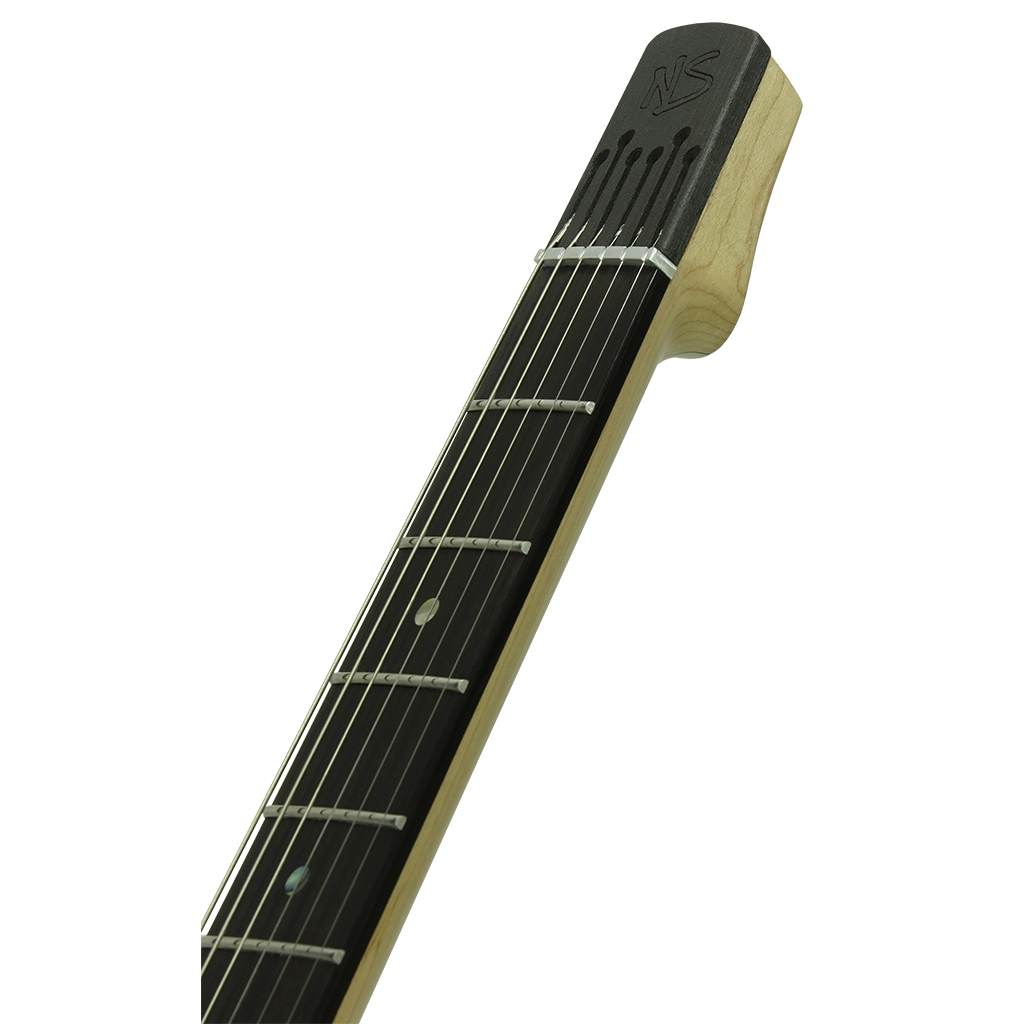

Fingerboard:
- Ebony
- 12 inch radius
- 24 medium jumbo frets

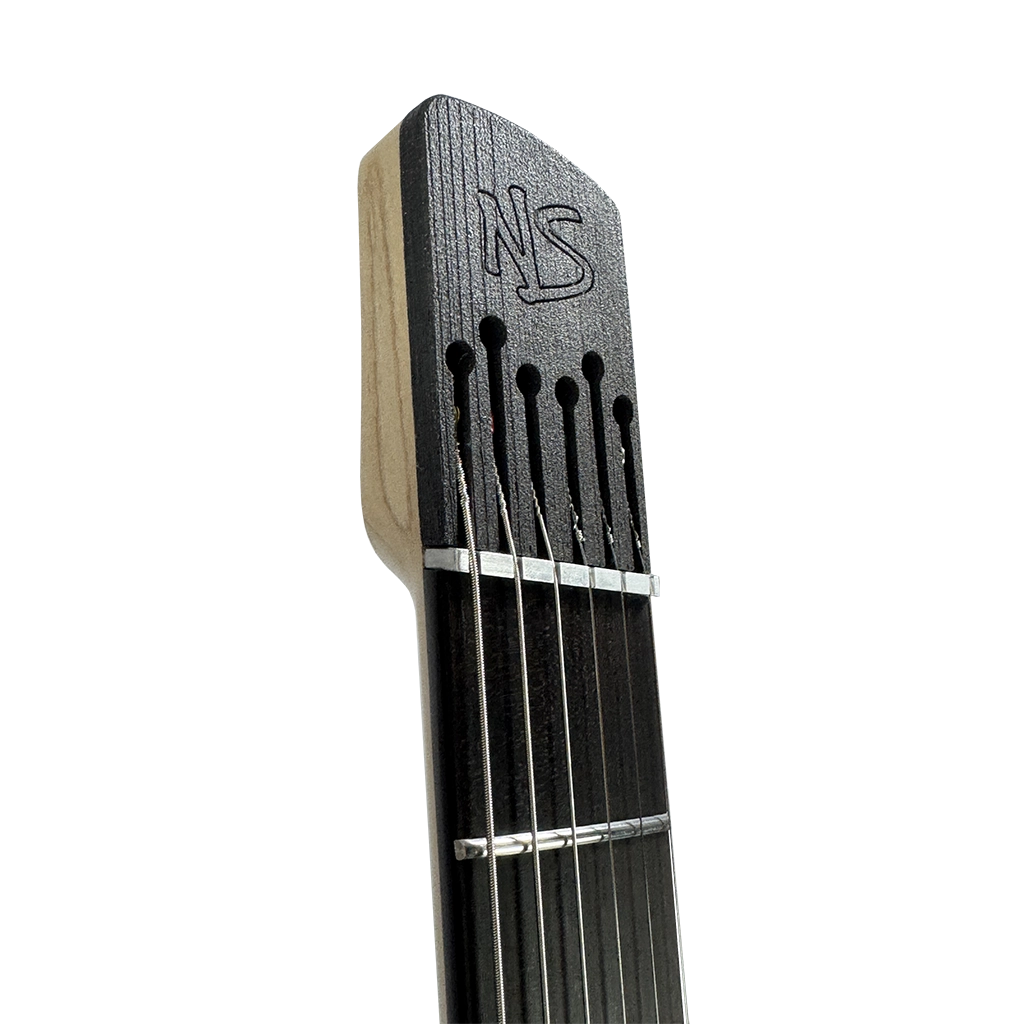

Nut: Aluminum

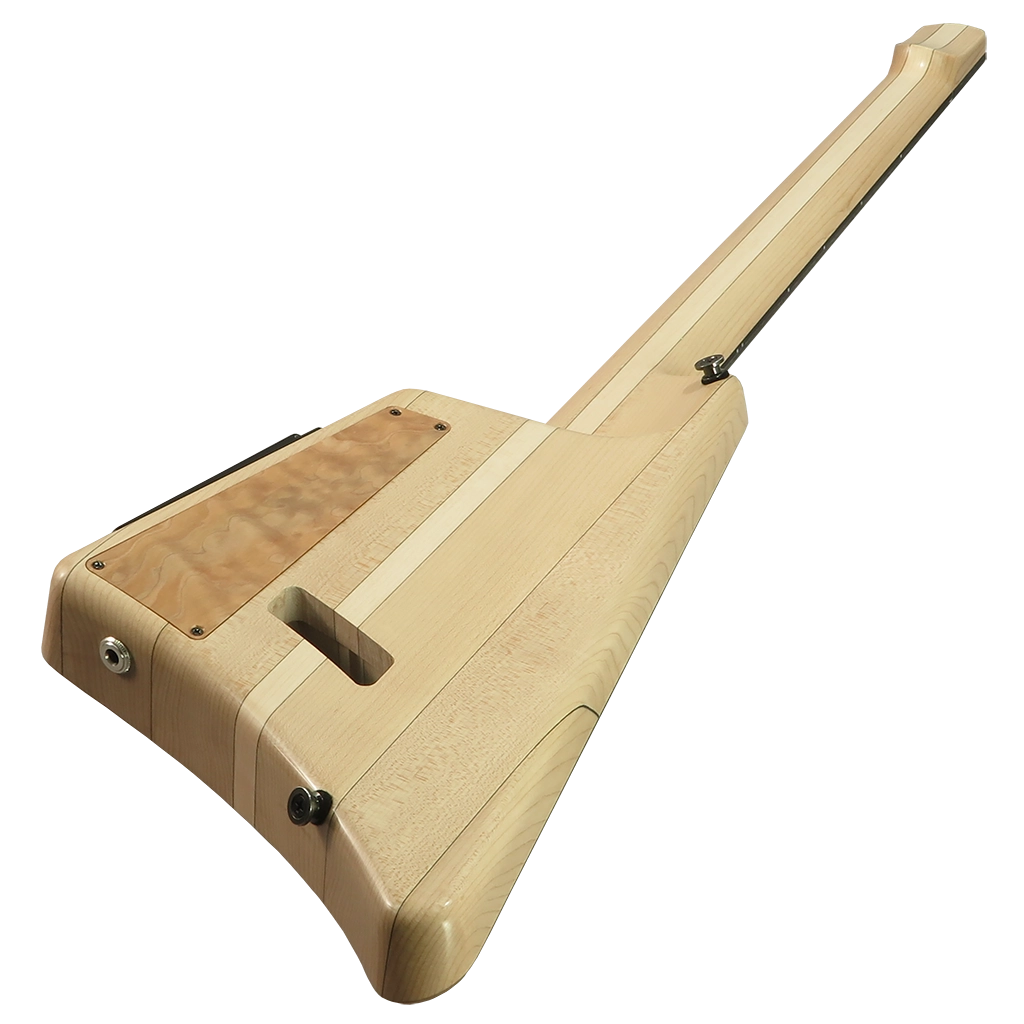

Body and neck: Maple with carbon reinforced neck structure
Bridge/Tuners:
- NS Fulcrum™ Self-Clamping Tuning System with up-facing knobs
- Accepts all standard guitar strings, no tools required
- Height and intonation adjustment with locking saddles
- Made in USA by RWB Precision Engineering
- US Patent No. 9,564,110
Truss rod: Dual action carbon fiber
Electronics:
- 4x EMG S4 passive humbucker pickups, 2 in doubled bridge configuration
- 5 position pickup selector switch
- Volume and tone controls
Mi-Si Activator™ preamp: selectable, adjustable (3 to 12DB) boost and low impedance output. Supercapacitor powered; charges in 60 seconds via output jack. When disengaged, the Activator does not affect passive function of guitar.
Folding leg rest
Made in the USA
